Hazard warning lights and indicators

[JIMBO]

Can someone help me when I bought my Mehari the indicator lights just stayed on when you used the indicator stalk not winking. I have bought a new unit but I am unsure if it is wired up right. I have a Citroen Haynes manual but even though I follow the diagram nothing seems to work can anyone simplify a diagram which I can understand and also give me some ideas why it may not be working properly. Cheers Ps the wiring was a mess when I got the car.

[howardjs]

Hi Check out post re Hazard lights on Page 2 March 19 maybe this will answer your question

[cmwbob]

not sure if this is the diagram you have, but may help

2cv wiring diag with hazard sw.jpg (92.04 KiB) Viewed 10164 times

[cmwbob]

the key is the use of a multi contact sw, or if unavailable use a 3 way 12v relay to replicate the additional required sw contacts

[cmwbob]

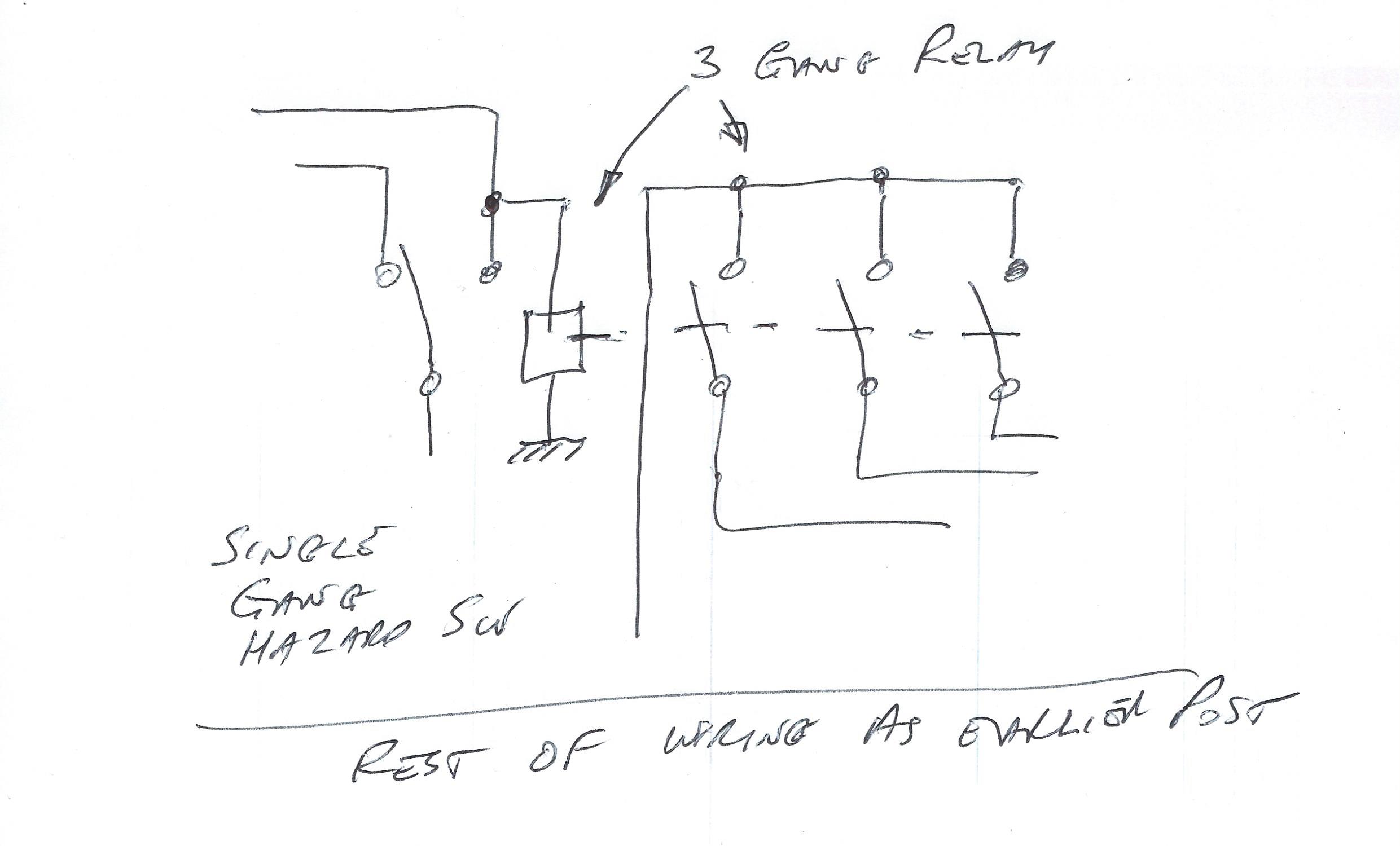

relay mod thus

hazard sw std single gang add relay.jpg (146.75 KiB) Viewed 10163 times

[JIMBO]

Thanks Chaps you are stars.

[JIMBO]

I contacted an auto electrical enterprise yesterday to buy a 3 gang relay they say there is no such animal.. Back to square one!!!!????

[cmwbob]

Ignore car parts wholesalers, go to elect distributor, or ebay but this is what you want plus a suitable surface mtg base

https://uk.rs-online.com/web/p/non-latc ... s/0345959/

[cmwbob]

or this 4 pole 12vdc item top of list and base at bottom of list
https://www.ebay.co.uk/itm/Europa-Compo ... i0mVyabPJl

[JIMBO]

I have a feeling I may need help to sort this lot out once bought!!!!!!! Thanks for the help.
